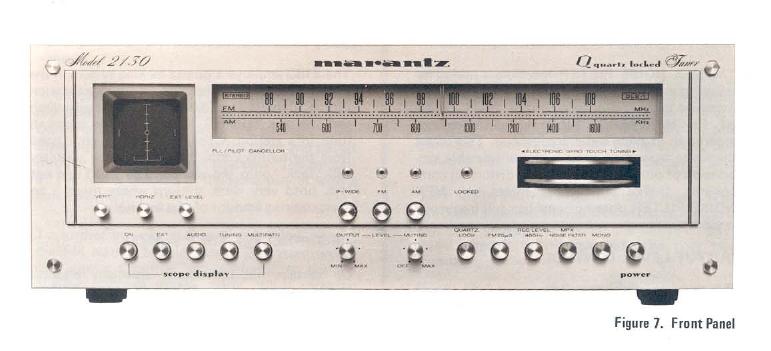

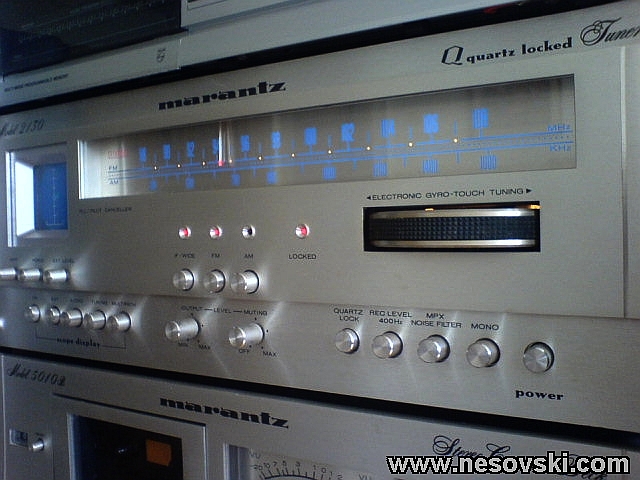

marantz 2130

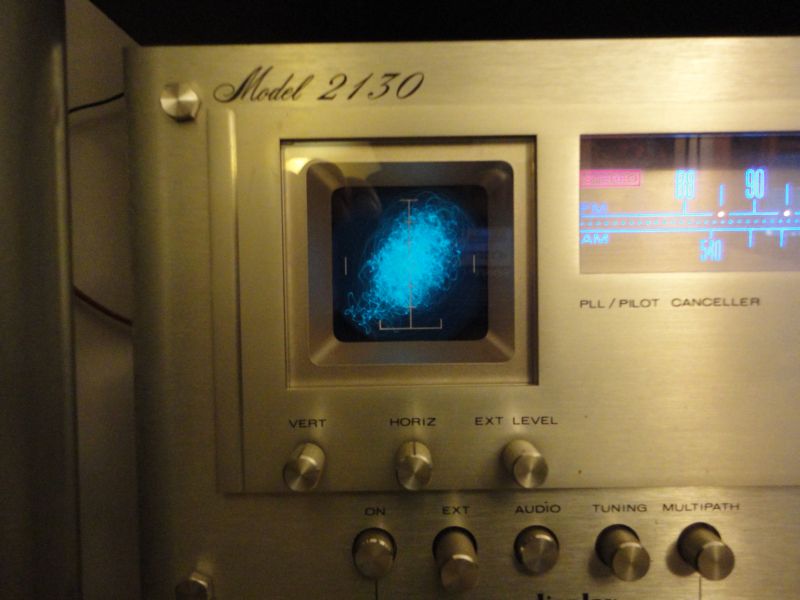

scope display and controls - 1



scope display and controls - 2





Dimensions 416 x 146 x 301 mm
Weight : 9 kg



Tech Specifications: marantz 2120  vs  marantz 2130



         2120                                                                                                           2130

RF Sensitivity

1.8 uV

RF Sensitivity

1.2 uV

50 dB quieting sensitivity, Stereo

35 uV

50 dB quieting sensitivity, Stereo

17 uV

50 dB quieting sensitivity, Mono

2.5 uV

50 dB quieting sensitivity, Mono

2.2 uV

THD, Mono

0.10%

THD, Mono

0.05%

THD, Stereo

0.30%

THD, Stereo

0.07%

Signal to Noise Ratio, Mono

80 dB

Signal to Noise Ratio, Mono

-83 dB @ 1000 uV

Signal to Noise Ratio, Stereo

70 dB

Signal to Noise Ratio, Stereo

-76 dB @ 1000 uV

Frequency Response

30 Hz - 15 kHz

Frequency Response

30 Hz to 15 KHz, +.2, -1 dB

Hum and Noise

-75 dB

Hum and Noise

-80 db at 65 dBf (1000 uV)

Capture Ratio

1.0 dB

Capture Ratio

1.5 dB

Narrow Capture Ratio

1.4 dB

Narrow Capture Ratio

0.8 dB

IF Image Rejection

90 dB

IF Image Rejection

120 dB

IF Rejection

90 dB

IF Rejection

120 dB (balanced)

Stereo Subcarrier Rejection

70 dB

Stereo Subcarrier Rejection

75 dB

Alternate Channel Selectivity (wide or normal)

050 dB

Alternate Channel Selectivity (wide or normal)

045 dB

Alternate Channel Selectivity (Narrow)

80 dB

Alternate Channel Selectivity (Narrow)

85 dB

Spurious Rejection

100 dB

Spurious Rejection

120 dB

AM Carrier Rejection

55 dB

AM Carrier Rejection

65 dB

FM Stereo Separation at 1 KHz (narrow)

46 dB

Stereo Separation at 1 kHz

55 dB

FM Stereo Separation at 1 kHz

50 dB

FM Stereo Separation at 1 KHz (narrow)

50 dB



Quartz Frequency Lock

Present





Scope Tube

Hitachi 50TB31

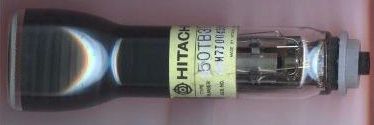

Hitachi 50TB31 Tube
