Philips CD204



 Signal to Noise Ratio  > 90 dB
 THD  ≤ 0,005% (0dB)
De-emphasis  0 of 15/50 us
Power Consumption  ≤30W
Dimensions  420 X 92 X 300 mm
Weight: 7 Kg

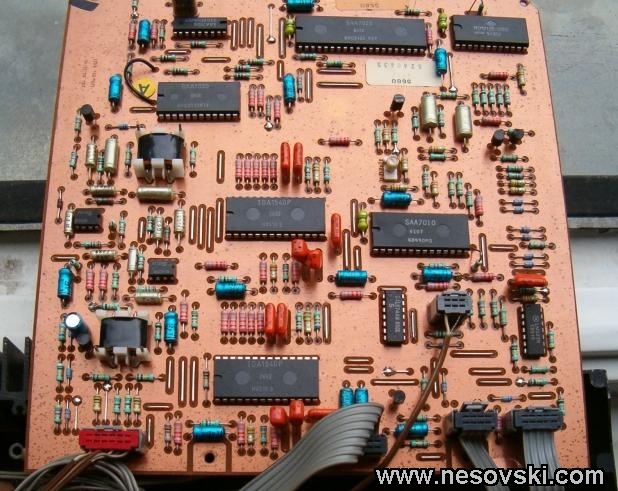

 Top panel: decoding board

IC's on decoding PCB:

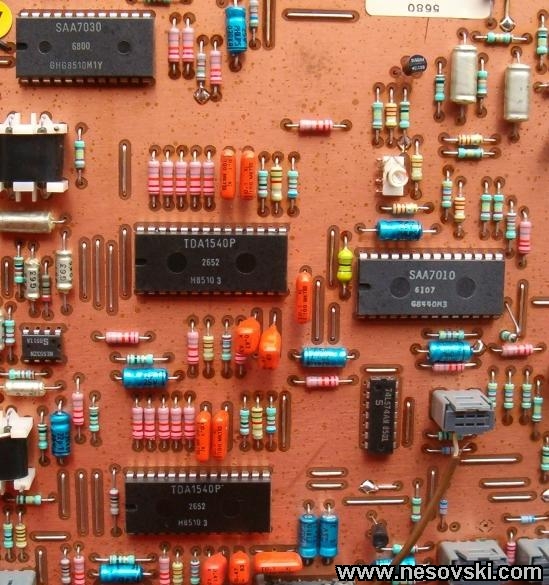

 2 X TDA1540P  Digital to Anlalog Convertors (DAC)
 SAA7010  Demodulator
 SAA7020  Error Corection chip
 SAA7030  Digital Filter
 MSM2128  RAM (Memory chip)

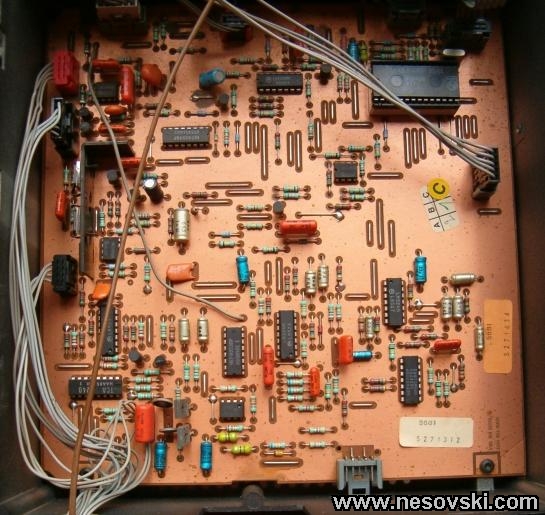

 Bottom panel: servo board

IC's on servo PCB:

 MAB8440P  8bit Microcontroler





 2 X TDA1540P

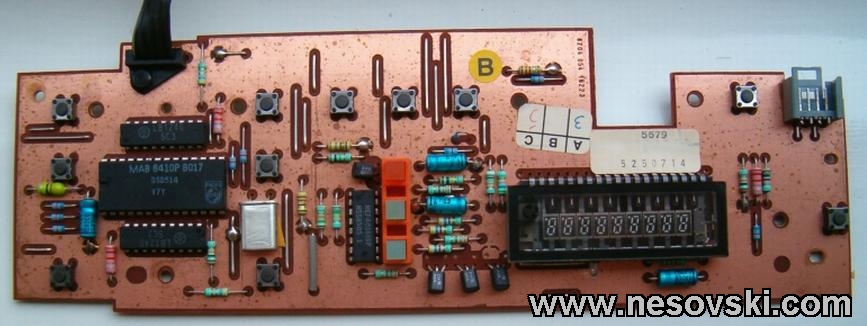

Display PCB

IC's on display PCB:

 MAB8410P  8bit Microcontroler

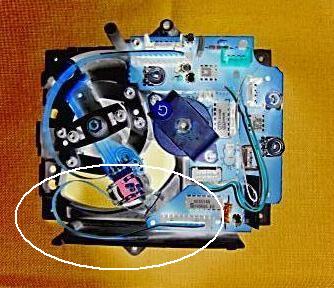

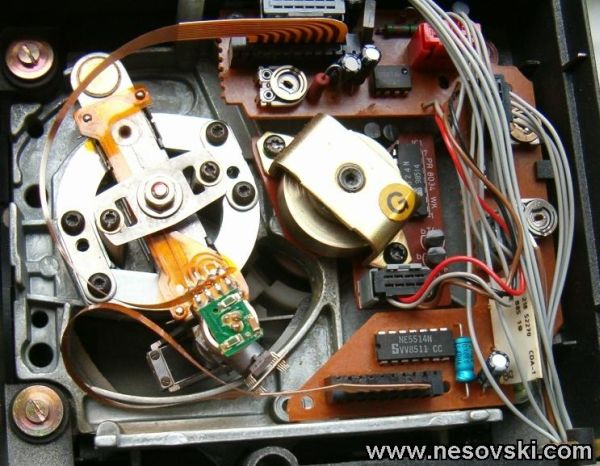

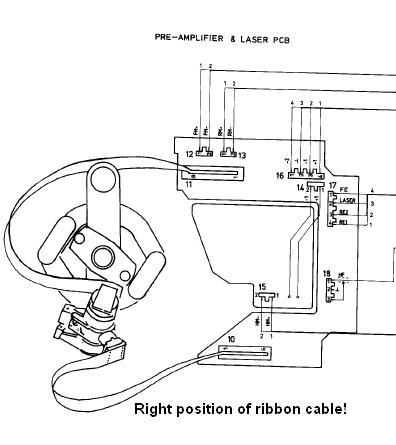

 CDM-1 (bottom view)
